Specials & Projekte, Spot Ba15d AR70 Premium
L560736927

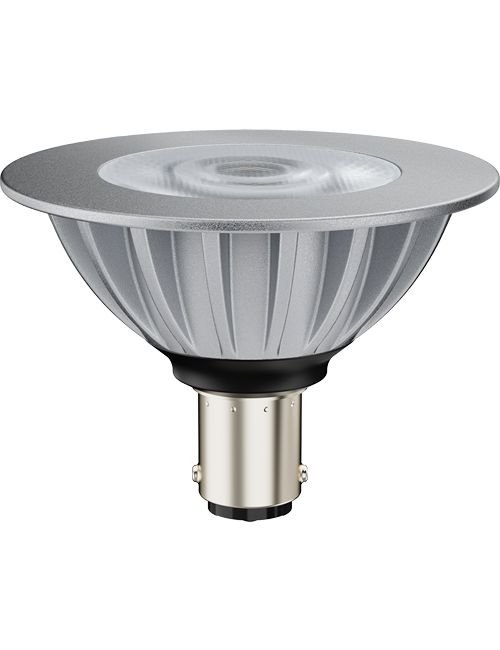

LED Ba15d AR70x50mm 12V 500Lm 6.5W 2700K 927 36° AC/DC Dimmbar
- > CRI90
- > 2 Jahre Garantie
- SDCM3
- Dimmbar
- Geeignet für hochwertige Projekte
- Flimmerfrei (Wechselstromwelligkeit <10%)
- Besser abkühlen, kann > 10 Stunden am Stück brennen
- 95 % des Lichts bleibt innerhalb des Abstrahlwinkels
Technische Beratung
DimmingEmpfohlener Treiber: Elektronischer Transformator 0-50W 12V AC Dim
Empfohlener Treiber Downloads
Datasheet Photos Energylabel ProduktdatenblattAngebot anfordern
Specifications
| General | |
| Eprel registration no | 2342072 |
| Socket | Ba15d |
| Bulb shape | AR70 |
| Width | 70.00 mm |
| Depth | 70.00 mm |
| Height | 50.00 mm |
| Lamp shape | Reflector |
| Finish | Clear |
| Colour | Silver |
| Colour housing | Grey |
| Body material | Aluminium |
| Lifespan | 50000 hours |
| Switches | 100000 |
| Beam angle | 36 ° |
| Dimmable | Yes |
| Degree of protection | IP20 |
| Net weight | 0.080 kg |
| Warranty | 3 years |
Light |
|
| Kelvin | 2700 K |
| Colour temp nr | 927 |
| Colour temperature | Warm white |
| Stable lumen | 530 lm |
| Lumen 90 cone | 500 lm |
| Luminous intensity | 1100 cd |
| Color Rendering Index (CRI) | 97 |
| Energy | ||
| Operating voltage | 12 V | |
| Volt | 10..14 V | |
| Frequency | 50..60 Hz | |
| Watt | 6.5 W | |
| Current type | AC/DC | |
| Power factor | 0.8 | |
| Energy efficiency class | G | |
| Product excluded by regulation | No | |
| Energy consumption | 7 W | |
| Lamp efficacy | 76.92 | |
Led |
||
| Filament LED | No | |
| LED type | COB | |
| Dimm type | Trailing and leading edge | |
| Number of leds / sticks | 1 | |
| Colour consistency SDCM | SDCM3 | |
| Dim to warm | No | |
| Adjustable beam angle | No | |
Ordering details |
Quantity pc(s) |
EAN |
| Artikelnummer | L560736927 | |
| Single package | 1 | 8718739082410 |
| Inner carton | 10 | 18718739082417 |
| Outer carton | 100 | 28718739082414 |
