Marine & Industrie, R7s 20-50V Premium
L641824530

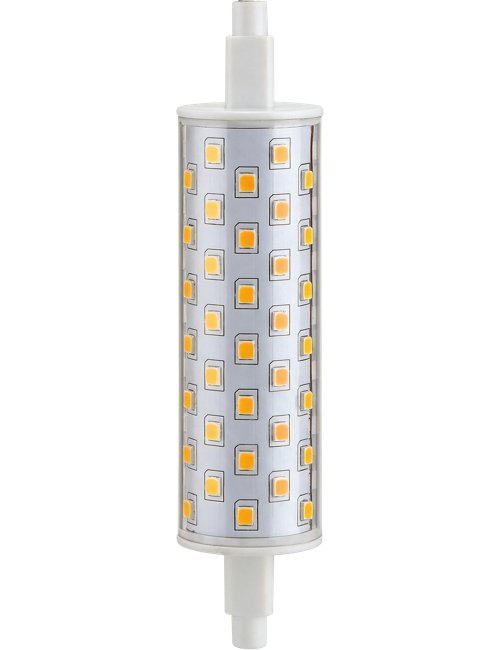

LED R7s T26x118mm 20-50V 1250Lm 9.5W 3000K 830 360° AC/DC Klar Nicht Dimmbar
- > 2 Jahre Garantie
- Lumen höher als der Durchschnitt auf dem Markt
- Qualität höher als der Durchschnitt auf dem Markt
- Spezielles (dekoratives) Design für alle Märkte
- ≥100 Lumen pro Watt
Downloads
Datasheet Photos Energylabel ProduktdatenblattAngebot anfordern
Specifications
| General | |
| Eprel registration no | 2833824 |
| Socket | R7s |
| Bulb shape | T26 |
| Width | 26.00 mm |
| Depth | 26.00 mm |
| Height | 118.00 mm |
| Lamp shape | Linear |
| Finish | Clear |
| Colour | Colourless |
| Colour housing | Colourless |
| Body material | Ceramic |
| Lifespan | 25000 hours |
| Switches | 50000 |
| Beam angle | 360 ° |
| Dimmable | No |
| Degree of protection | IP20 |
| Net weight | 0.035 kg |
| Warranty | 3 years |
Light |
|
| CRI | 80 |
| Kelvin | 3000 K |
| Colour temp nr | 830 |
| Colour temperature | Neutral white |
| Stable lumen | 1250 lm |
| Energy | ||
| Operating voltage | 24 V | |
| Volt | 20..50 V | |
| Frequency | 60 Hz | |
| Watt | 9.5 W | |
| Current type | AC/DC | |
| Power factor | 0.6 | |
| Energy efficiency class | E | |
| Product excluded by regulation | No | |
| Energy consumption | 10 W | |
| Lamp efficacy | 131.58 | |
Led |
||
| Filament LED | No | |
| LED type | SMD 2835 | |
| Dimm type | Non-Dim | |
| Number of leds / sticks | 84 | |
| Colour consistency SDCM | SDCM6 | |
| Dim to warm | No | |
| Adjustable beam angle | No | |
Ordering details |
Quantity pc(s) |
EAN |
| Artikelnummer | L641824530 | |
| Single package | 1 | 8718739085572 |
| Inner carton | 10 | 18718739085579 |
| Outer carton | 100 | 28718739085576 |
