Haushalt, Spot MR16 Switch
L642745035

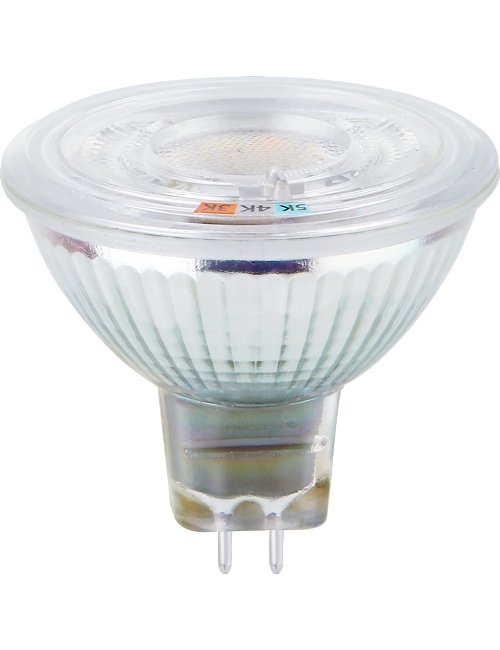

LED GU5.3 MR16 CCT Switch 50x46mm 12V 500Lm 6.5W 3000K/4000K/5000K Ra80 50° AC/DC Klar Dimmbar
- SDCM3
- Dimmbar
- Spezielles (dekoratives) Design für alle Märkte
- Perfekter Halogenersatz hinsichtlich der Abmessungen
- Kelvin per Schalter einstellbar, mehr Anwendungen mit einer LED möglich
Technische Beratung
DimmingDownloads
Datasheet Photos Energylabel ProduktdatenblattAngebot anfordern
Specifications
| General | |
| Eprel registration no | 2618208 |
| Socket | GU5.3 |
| Bulb shape | MR16 |
| Width | 50.00 mm |
| Depth | 50.00 mm |
| Height | 46.00 mm |
| Lamp shape | Reflector |
| Finish | Clear |
| Colour | Colourless |
| Colour housing | Silver |
| Body material | Glass |
| Lifespan | 15000 hours |
| Switches | 7500 |
| Beam angle | 50 ° |
| Dimmable | Yes |
| Degree of protection | IP20 |
| Net weight | 0.040 kg |
| Warranty | 2 years |
Light |
|
| CRI | 80 |
| Kelvin | 3000..5000 K |
| Colour temp nr | 830..850 |
| Colour temperature | Neutral white |
| Stable lumen | 550 lm |
| Lumen 90 cone | 500 lm |
| Luminous intensity | 600 cd |
Remark |
|
| Die LED bietet die Möglichkeit, die Farbtemperatur anzupassen. Die wählbaren Farbtemperaturen (CCTs) sind 3000 K, 4000 K und 5000 K. | |
| Energy | ||
| Operating voltage | 12 V | |
| Volt | 10..15 V | |
| Frequency | 50..60 Hz | |
| Watt | 6.5 W | |
| Current type | AC/DC | |
| Power factor | 0.7 | |
| Energy efficiency class | G | |
| Product excluded by regulation | No | |
| Energy consumption | 7 W | |
| Lamp efficacy | 76.92 | |
Led |
||
| Filament LED | No | |
| LED type | SMD | |
| Dimm type | Trailing edge | |
| Number of leds / sticks | 16 | |
| Colour consistency SDCM | SDCM6 | |
| Dim to warm | No | |
| Adjustable beam angle | No | |
Ordering details |
Quantity pc(s) |
EAN |
| Artikelnummer | L642745035 | |
| Single package | 1 | 8718739083400 |
| Inner carton | 10 | 18718739083407 |
| Outer carton | 100 | 28718739083404 |
